ATEM Mini Pro Blackmagic Design Live Stream Switcher Rental in Surrey, BC
A live production switcher for streaming or recording a multi-camera event. Plug in up to four HDMI cameras or computers, cut between them with the buttons, and stream straight to YouTube or another platform over Ethernet, or record the program to a USB-C drive. The HDMI out can show a multiview of every source at once, and two 3.5mm inputs take mics. It works in HD up to 1080p60, so set each camera's HDMI output to 1080p.
In the case
- 1xBlackmagic ATEM Mini Pro power cable
$50 / day
$90 for 3 days$125 for a week
Weekend rate: out Friday from 12 pm and back Monday by 12 pm is 1 day. An earlier pickup or later return is 3 days.
Monday to Friday, 9 a.m. to 5 p.m. Need earlier or later? Call and we’ll arrange it.
| Total for |
|---|
Plus GST and PST.
Questions first? Call 778-244-4333
Before it leaves, we check every item against your booking, power it on and photograph its condition.
Questions about deposits or insurance? Call us and we'll walk you through it.
Good to know
- It runs on its 12 V power supply, so plan on an outlet nearby.
- Add an HDMI cable for each camera and one for the program or multiview screen, from the list below.
- To record, bring a USB-C drive formatted exFAT (Windows or Mac) or HFS+ (Mac).
- Streaming goes out over Ethernet, or shares a computer's connection over USB-C.
- The two 3.5 mm inputs are unbalanced. For XLR mics, run them through a mixer first.
Goes well with the Blackmagic ATEM Mini Pro

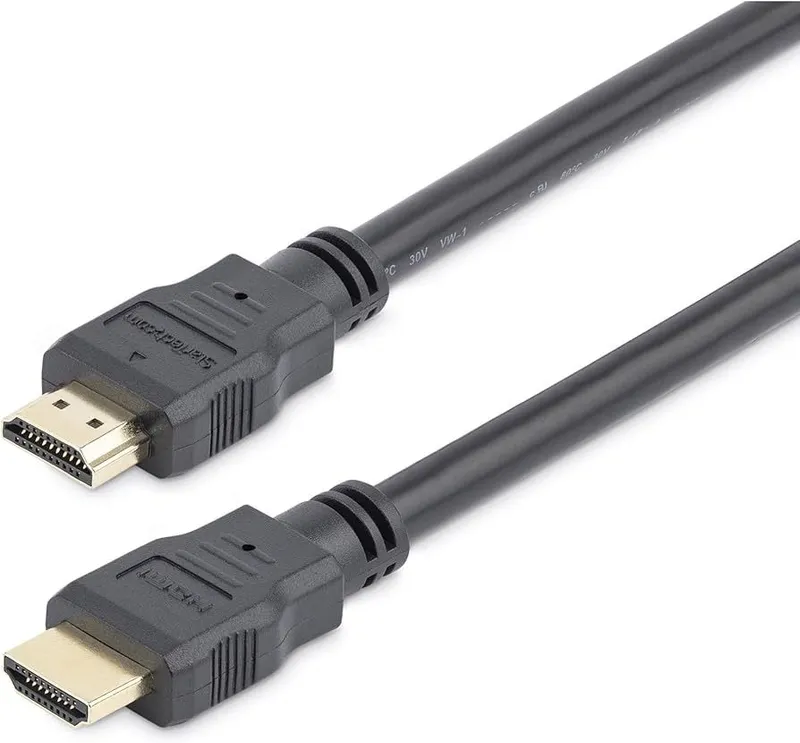

6ft HDMI Cable$1 / day
Capture Card for Laptop Live Stream$15 / day

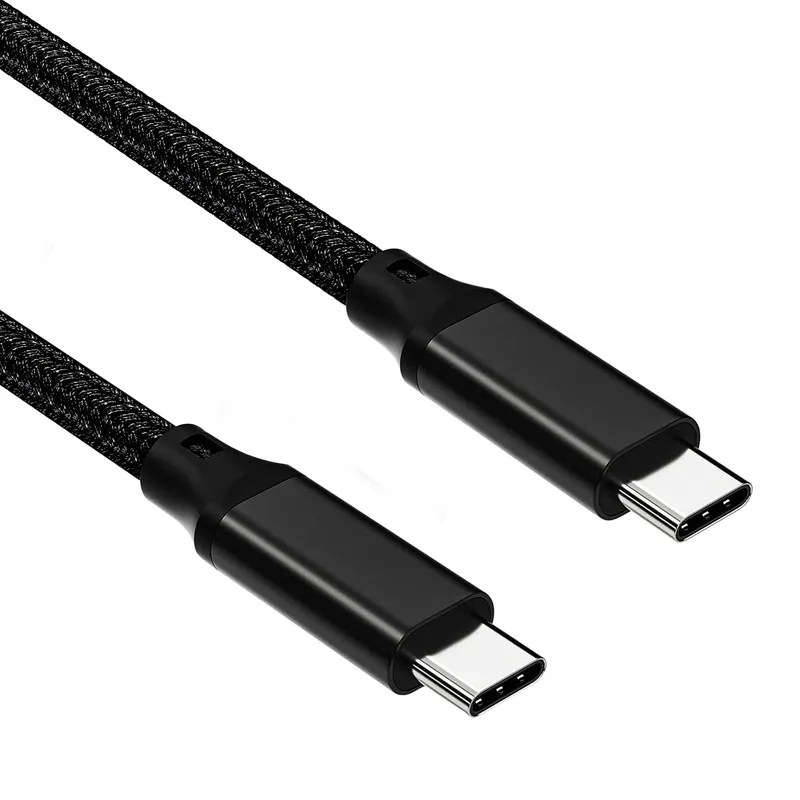

USB-C to USB-C 60W+/USB 2 Cable$1 / day
Blackmagic ATEM Mini Pro specs
| Inputs | 4 HDMI, HD only |
|---|---|
| Outputs | HDMI (program, preview or multiview), USB-C webcam out |
| Formats | 720p, 1080i and 1080p up to 60 |
| Audio inputs | 2 x 3.5 mm stereo, with mic plug-in power |
| Streaming | RTMP and SRT over Ethernet, or over USB-C through a computer |
| Recording | H.264 MP4 to a USB-C drive |
| Power | 12 V external supply, 30 W |
From Blackmagic Design's published specifications.
Manuals and guides
- Blackmagic ATEM Mini Manual, Blackmagic's full manual for the ATEM Mini models, including the Pro (large PDF)
